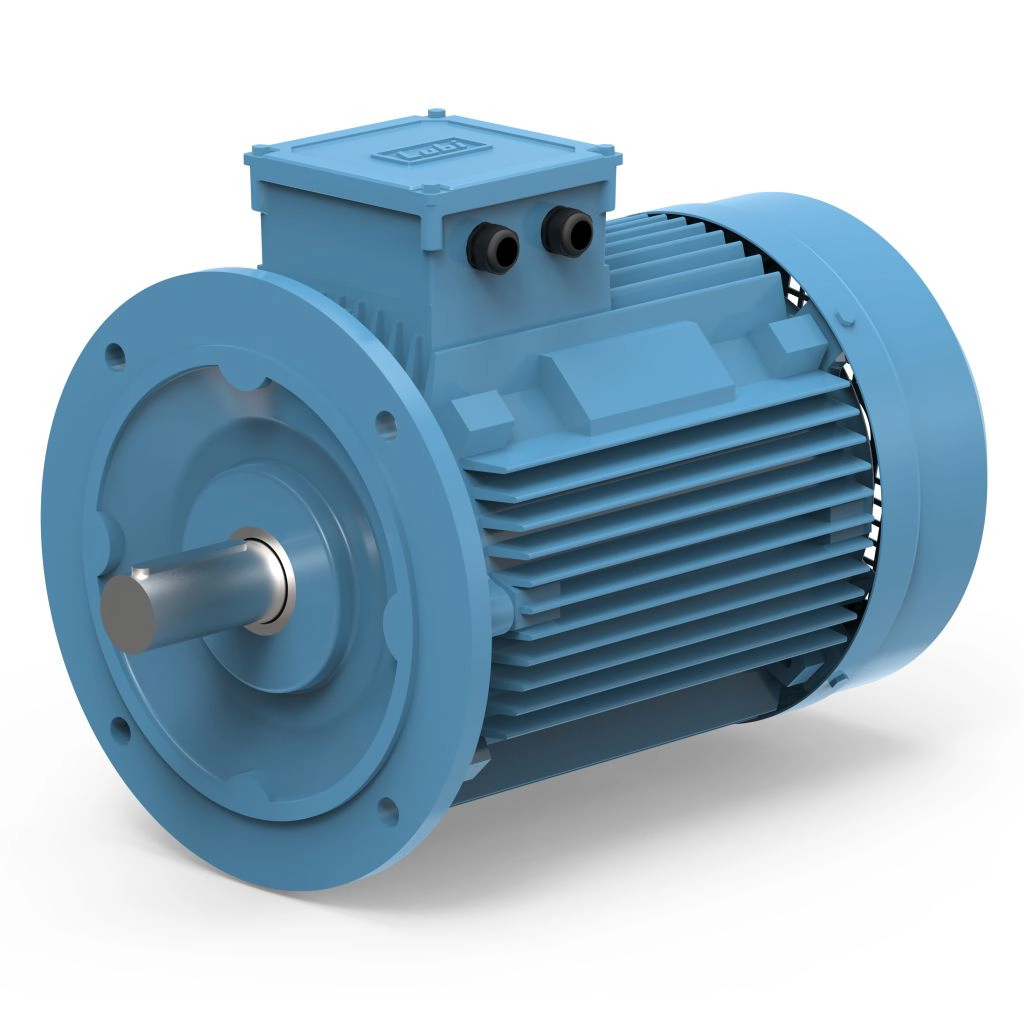

Lubi_Three_Phase_Induction_Motor_-_7

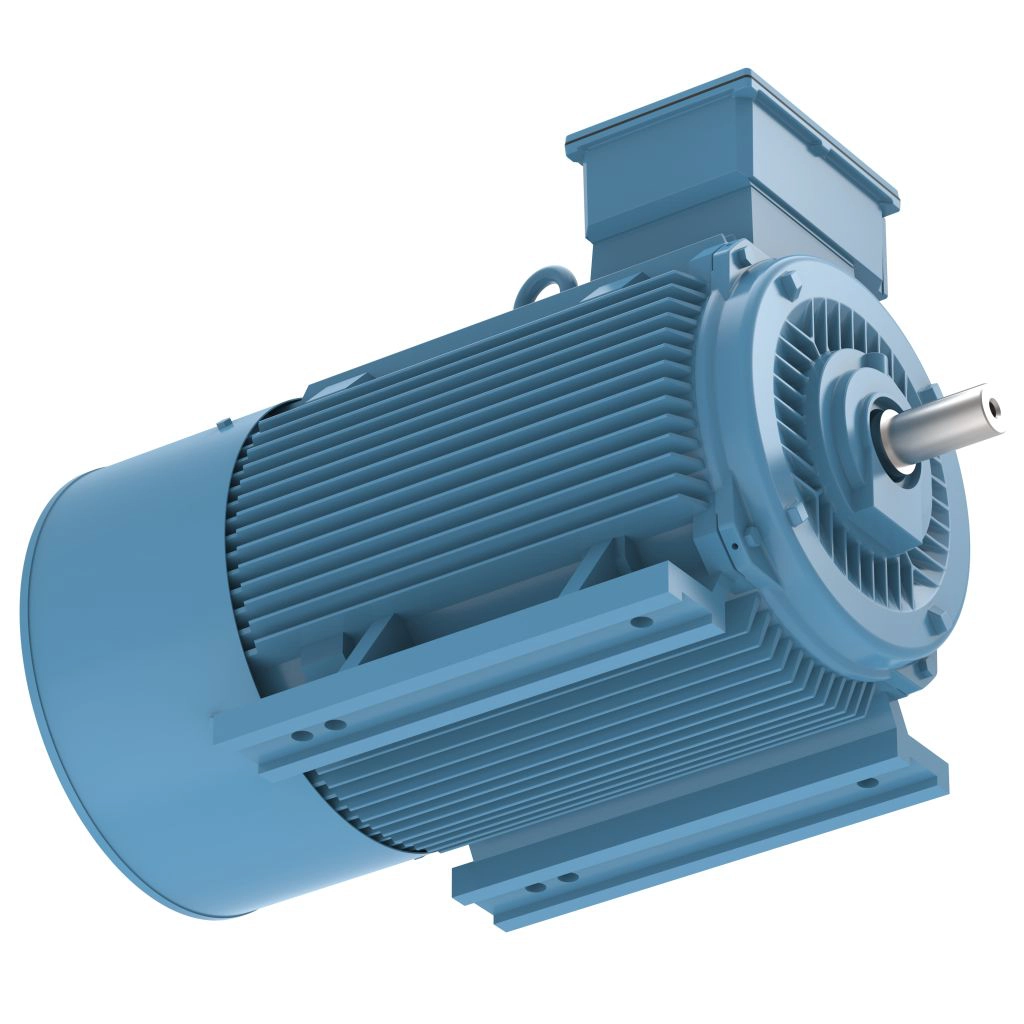

Lubi_Three_Phase_Induction_Motor_-_5

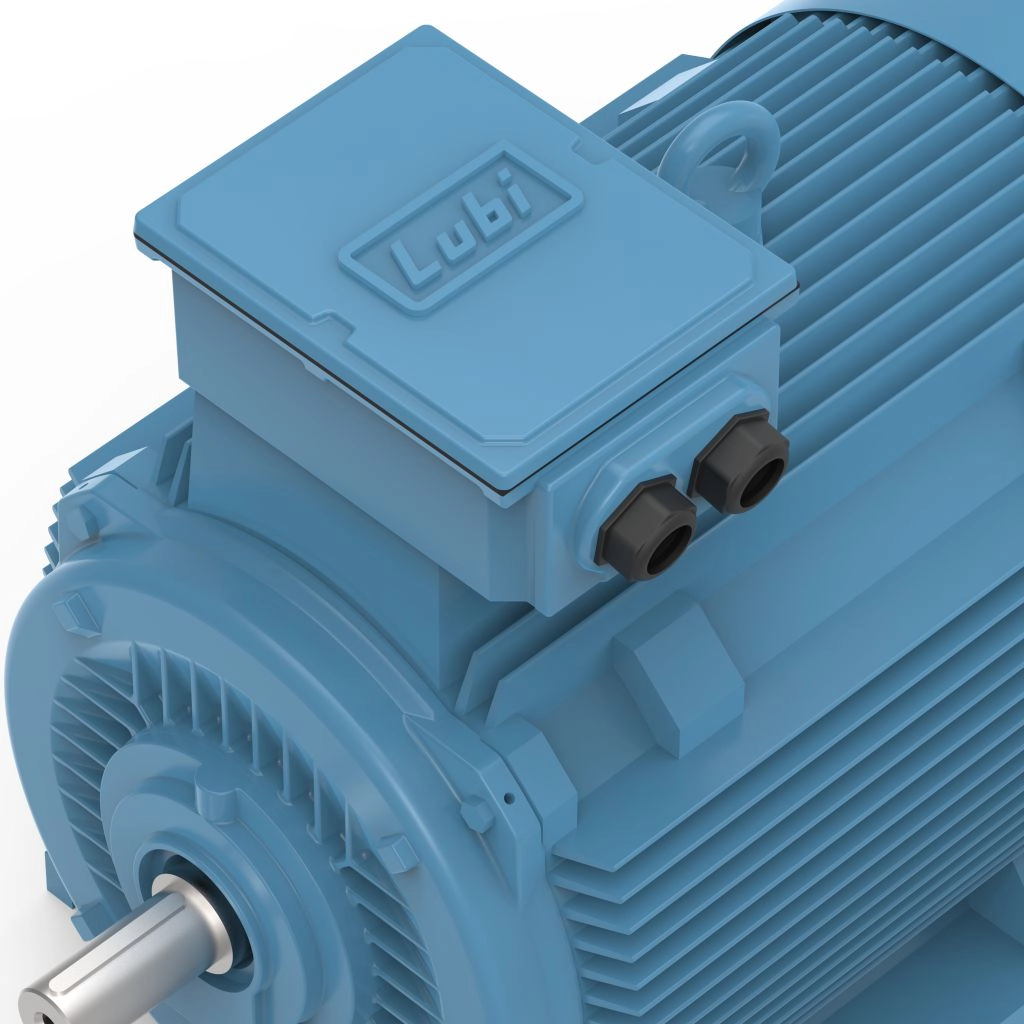

Lubi_Three_Phase_Induction_Motor_-_4

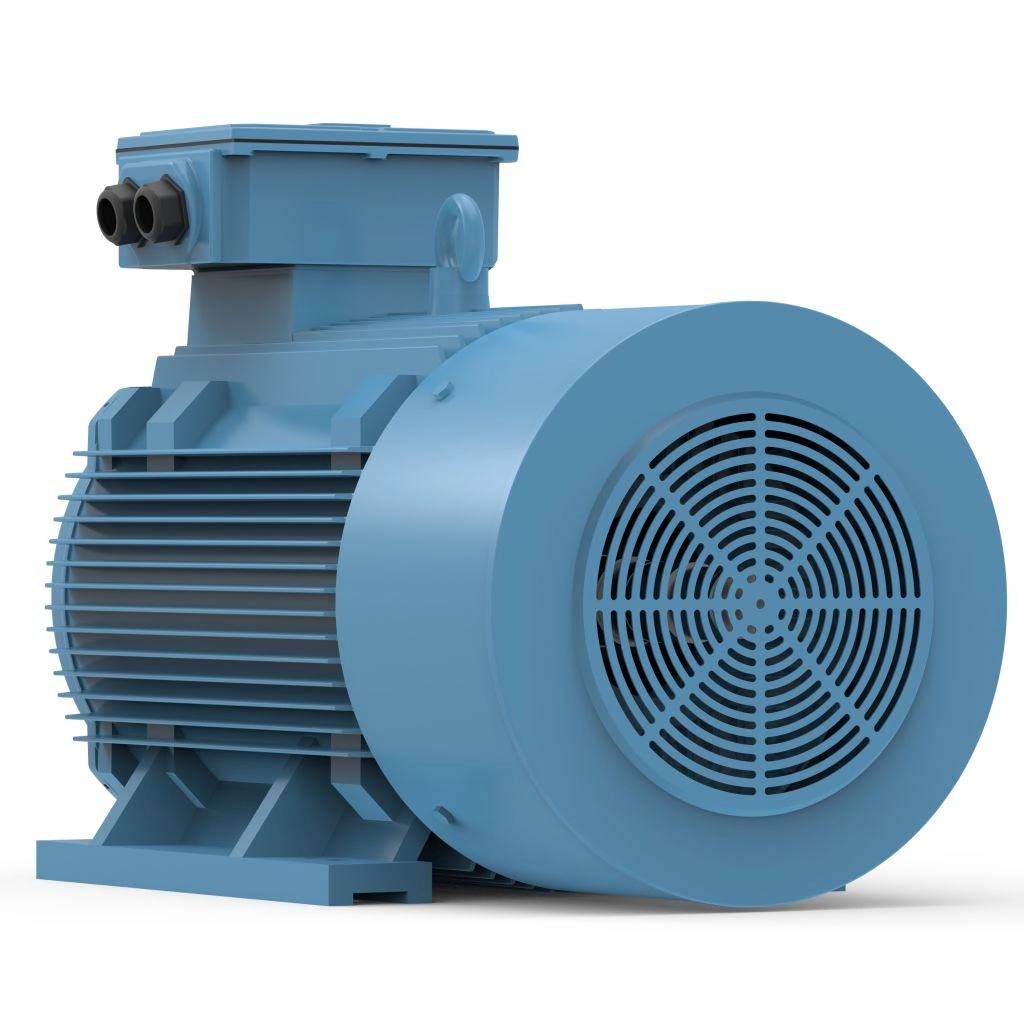

Lubi_Three_Phase_Induction_Motor_-_3

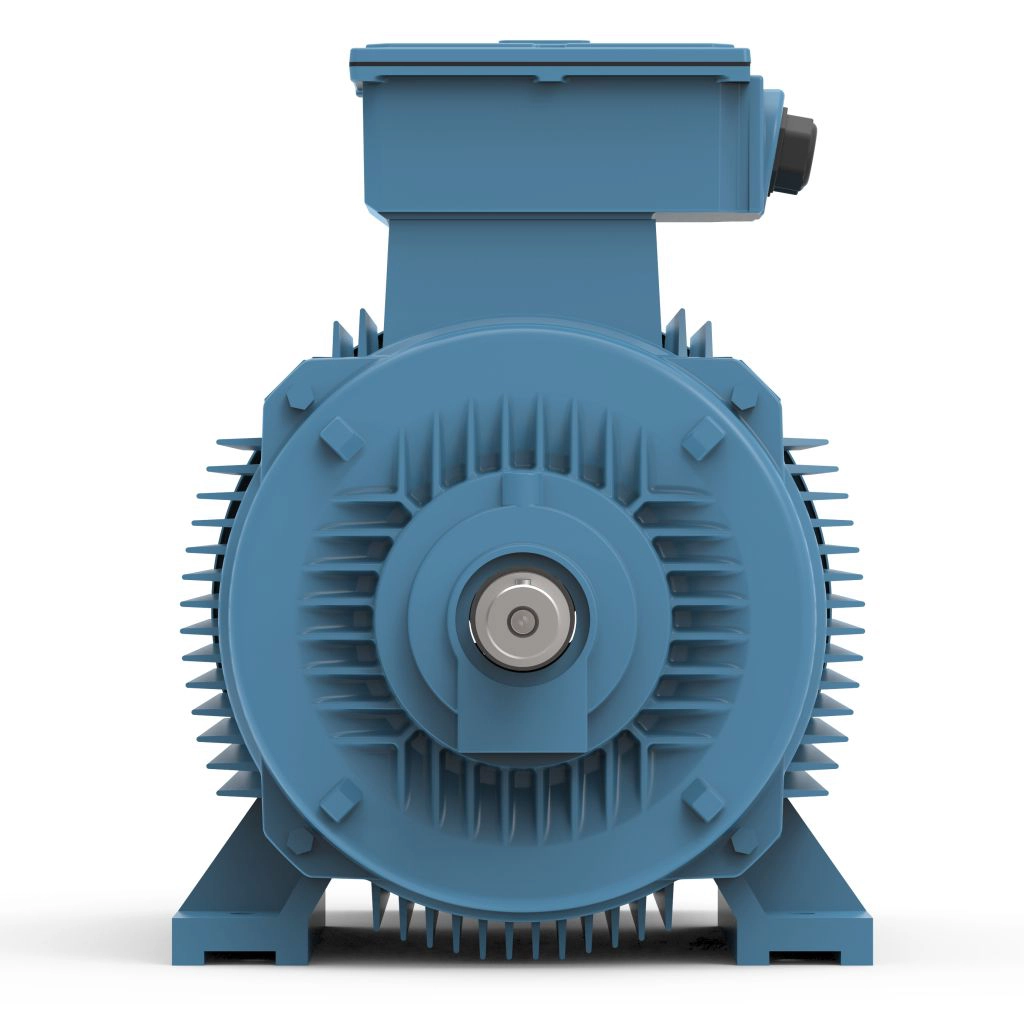

Lubi_Three_Phase_Induction_Motor_-_2

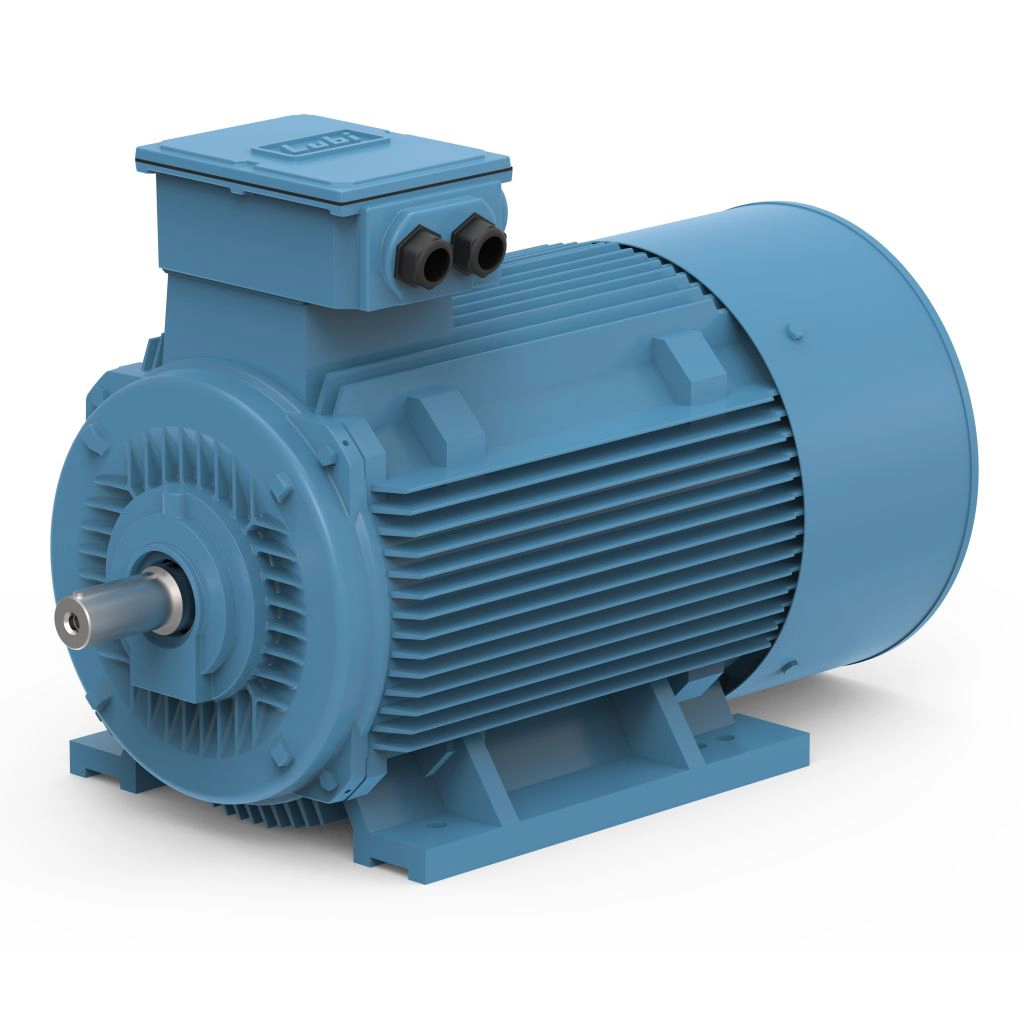

Lubi_Three_Phase_Induction_Motor_-_1

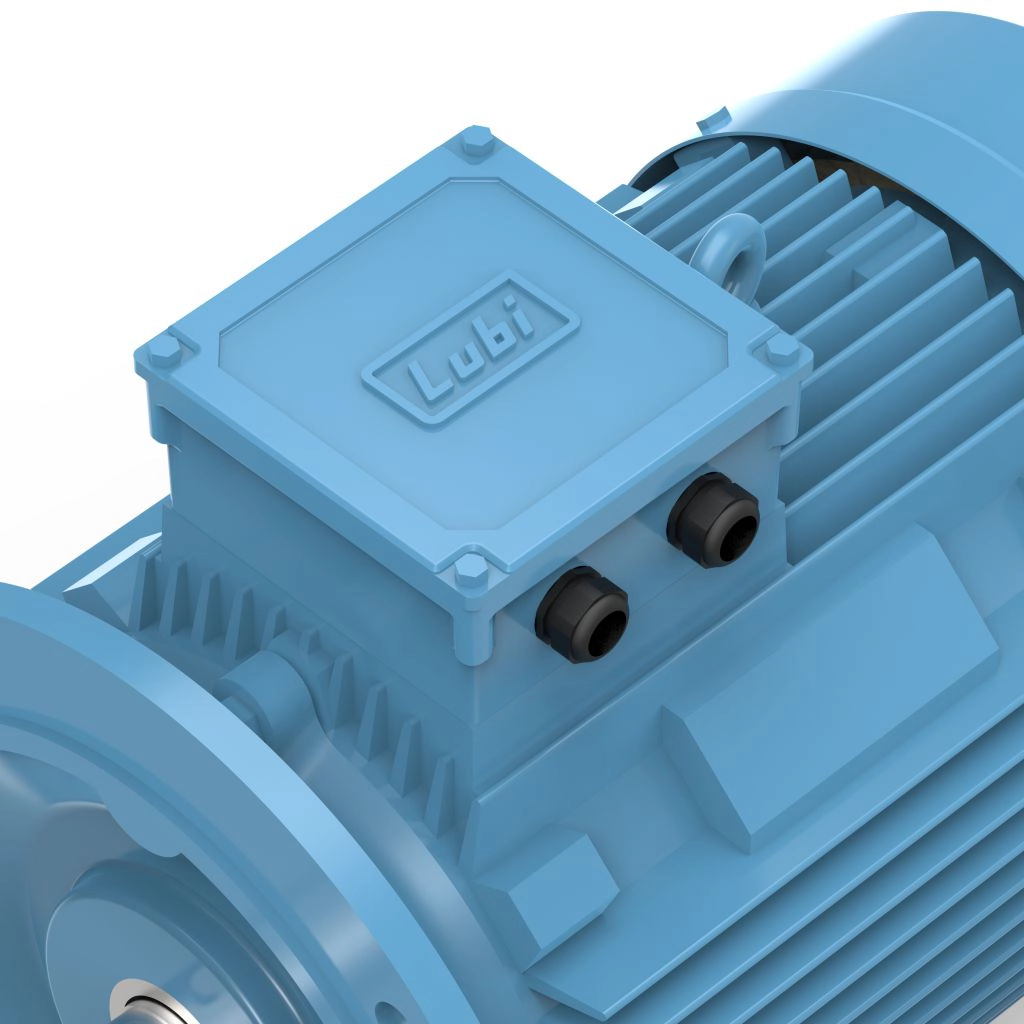

Lubi_Three_Phase_Induction_Motor_-_10

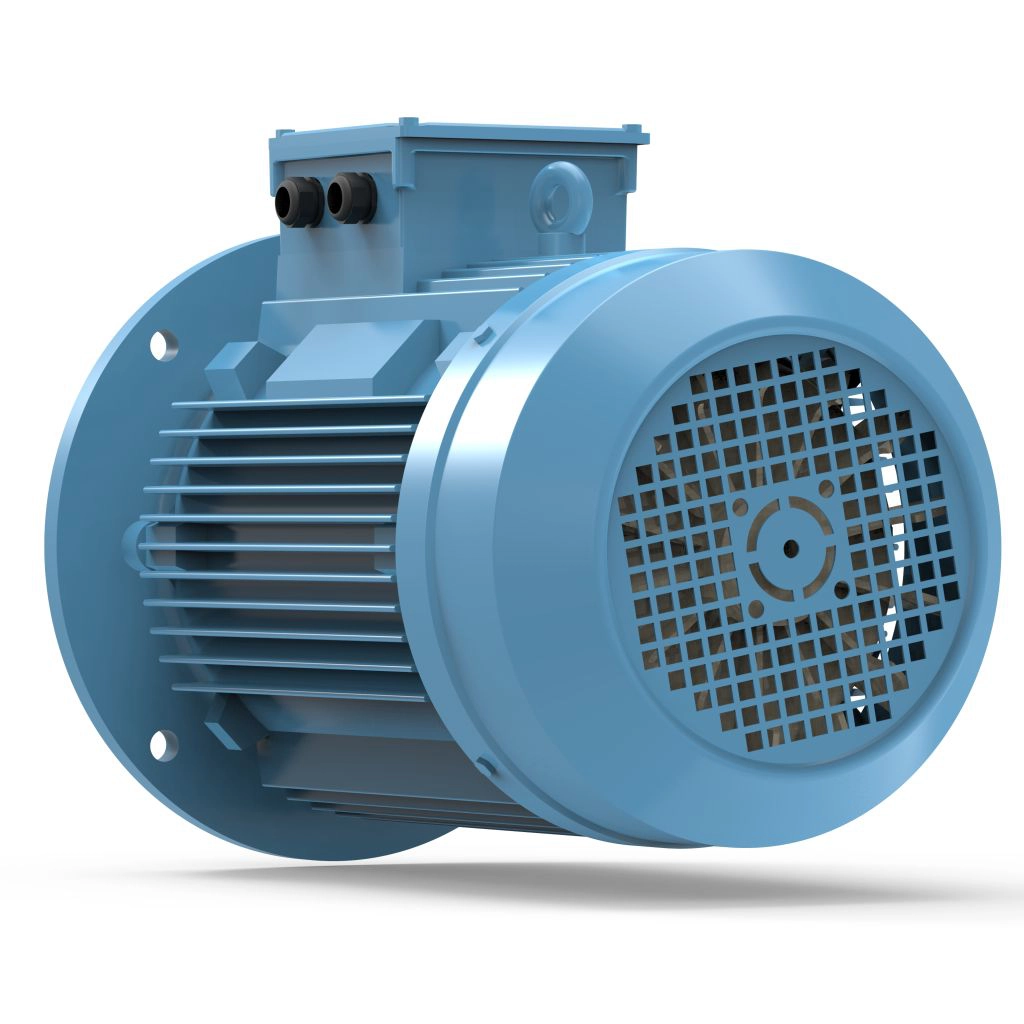

Lubi_Three_Phase_Induction_Motor_-_9

Features

  • Motor type : AC three-phase squirrel cage induction motor
  • Degree of protection : IP 55, Enclosure : TEFC, Duty / Rating : S1 / Continuous, Ambient temperature : +50°C.
  • Voltage ± variation : 415 V ± 10% • Frequency ± variation : 50 Hz ± 5%.
  • Combined variation : 10% (Absolute sum).
  • Altitude : Should be lower than 1000 metres above sea level.
  • Relative humidity : Up to 100%.
  • Connection : Up to 2.2 kW-Star connection with 3 leads & above 2.2 kW-Delta connection with 6 leads.
  • Direction of rotation : Anticlockwise or clockwise as seen from the Driver end side.
  • Insulation class : Class ‘F’ and temperature rise limited to class ‘B’.
  • Cooling method : IC411 / Shaft mounted fan.

Variety & Range

Frame

63 to 355L

Mounting

Foot, Flange and Face

Rated power

0.5 to 475 HP

Rated speed

upto 2900 rpm
